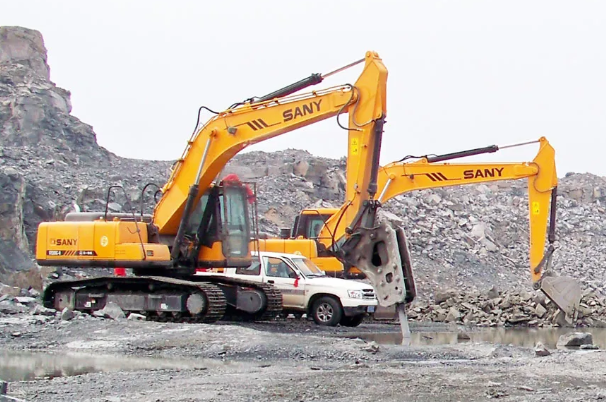

SANY 22 – 35T Medium Excavator

Sale!
SANY 22 - 35T Medium Excavator

Original price was: ৳ 65,000.00.Current price is: ৳ 62,300.00.

Specifications

SANY SY305C LC — Dimensions & Specifications

Hydraulic Excavator SY305C LC

Highlights

Rated Power 284 hp / 209 kW
Dig Depth 22′ 4″ / 6815 mm
Operating Weight 71,132 lb / 32,265 kg
Bucket Breakout 45,861 lbf / 204 kN

Overall Dimensions

A. Transport Length 35′ (10,667 mm)
B. Transport Width 10′ 6″ (3,190 mm)
C. Transport Height 11′ 5″ (3,470 mm)
D. Upper Width 9′ 10″ (2,986 mm)
E. Cab Height 10′ 9″ (3,280 mm)
F. Track Shoe Width (standard) 2′ (600 mm)
G. Track Gauge 8′ 6″ (2,590 mm)
H. Minimum Ground Clearance 1′ 9″ (550 mm)
I. Tail Swing Radius 10′ 11″ (3,315 mm)
J. Length Center Idler to Center Sprocket 12′ 10″ (3,916 mm)
K. Track Length 15′ 11″ (4,840 mm)
Boom Length 20′ 2″ (6,150 mm)
Arm Length (standard) 10′ 6″ (3,200 mm)

Machine Parameters

Engine Type Cummins L9 Stage
Engine Max Power (Gross) 284 hp (209 kW) @ 2100 rpm
Engine Max Torque 1086 lbf·ft (1472 Nm) @ 1400 rpm
Engine Displacement 542 in³ (8.9 liter)
Main Pump Flow 2 × 62 gpm (562 lpm)
Swing Speed 9 rpm
Travel Speed 2.1 / 3.2 mph (3.4 / 5.2 km/h)
Tractive Effort 55,078 lbf (245 kN)
Max Arm Digging Force (ISO) 34,396 lbf (153 kN)
Number of Upper Rollers 2
Number of Lower Rollers 8
Ground Pressure (23.6″ / 600 mm shoes) 8.7 psi (60.3 kPa)

Working Range

a. Maximum Digging Height 34′ 5″ (10,497 mm)
b. Maximum Dumping Height 24′ 2″ (7,359 mm)
c. Maximum Digging Depth 22′ 4″ (6,815 mm)
d. Maximum Digging Reach 35′ 8″ (10,870 mm)
e. Minimum Swing Radius 13′ 1″ (4,000 mm)
f. Max Height at Min Swing Radius 27′ 7″ (8,405 mm)

Service Refill Capacities

Fuel Tank Capacity 119 gal (540 liter)
DEF Tank Capacity 19 gal (85 liter)
Hydraulic Tank Capacity 66 gal (300 liter)
Cooling System Capacity 7.9 gal (36 liter)
Engine Oil Capacity 4.6 gal (21 liter)
Category: Tag: Brand:

Description

Features
Premium Productivity
· Powerful, robust and reliable powertrain & hydraulic components are applied for the most demanding applications. Selectable working modes match machine performance to the application, maximizing productivity.

Super Long Service Life
· Through the accumulation of 15 years of experience and the “three-in-one” design and test system for large excavators of SANY, the operating life is more than 15,000H under mining working conditions.

Super High Adaptability
· Anti-corrosion coating, Independent extra-large radiator, High-capacity Multi-stage Filtration System.

Intelligent System
· Operation interface upgrade, intelligent operation interface of fashion technology, simpler and more convenient.

Lower Fuel Consumption
· Optimized positive flow hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%.
