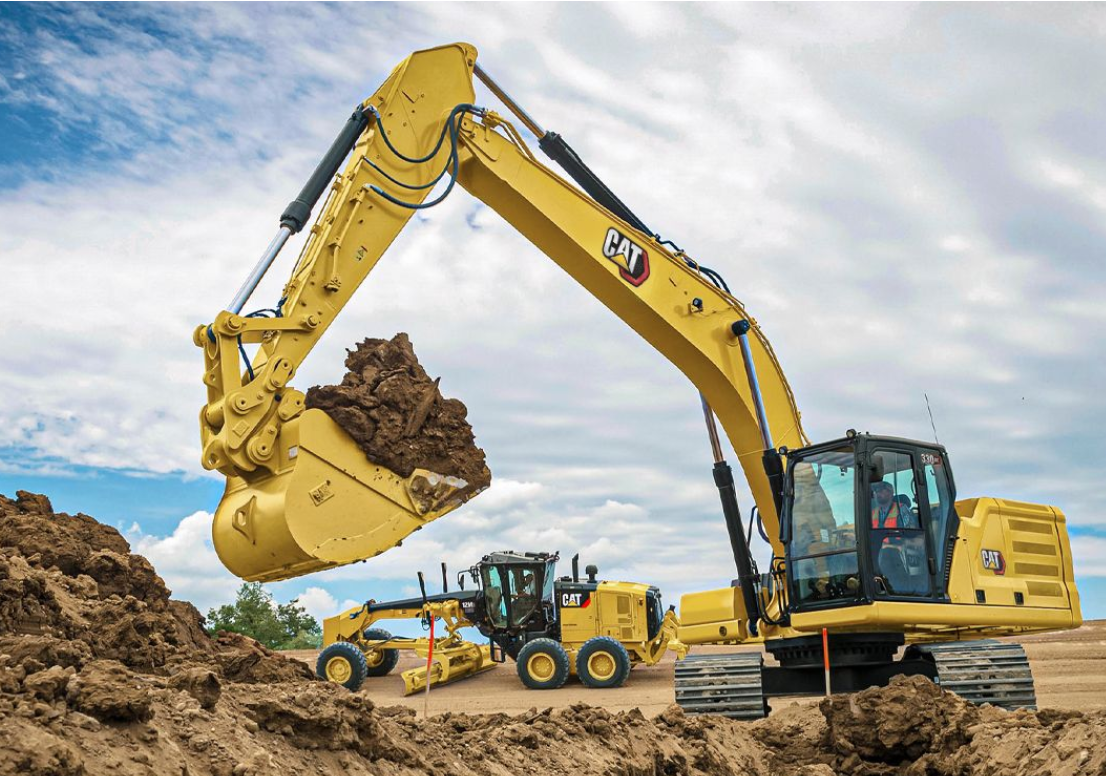

CAT Medium Excavators : 330 GC - Tier 4 / Stage V

Original price was: ৳ 41,000.00.Current price is: ৳ 39,700.00.

Specifications

Technical Specifications

Configuration referenced: long undercarriage; Reach 6.15 m (20’2″) boom; R3.2 m (10’6″) stick; Heavy Duty (HD) 1.54 m³ (2.01 yd³) bucket; 800 mm (31″) triple-grouser shoes; 6700 kg (14,770 lb) counterweight.

Engine

Net Power — ISO 9249	201 hp
Net Power — ISO 9249 (DIN)	204 hp (metric)
Engine Model	Cat® C7.1
Engine Power — ISO 14396	202 hp
Engine Power — ISO 14396 (DIN)	205 hp (metric)
Bore	4 in
Stroke	5 in
Displacement	428 in³
Biodiesel Capability	Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 standards

Weights

Operating Weight	68,100 lb
Note	Long UC, Reach boom, R3.2 m (10’6″) stick, HD 1.54 m³ (2.01 yd³) bucket, 800 mm (31″) triple-grouser shoes, 6,700 kg (14,770 lb) counterweight.

Working Ranges and Forces

Maximum Digging Depth	23.8 ft
Boom	Reach 6.15 m (20’2″)
Stick	Reach 3.2 m (10’6″)
Bucket	HD 1.54 m³ (2.01 yd³)
Maximum Reach at Ground Level	35.1 ft
Maximum Cutting Height	32.9 ft
Maximum Loading Height	22.8 ft
Minimum Loading Height	7.5 ft
Max Depth Cut (8 ft Level Bottom)	23.3 ft
Max Vertical Wall Dig Depth	19.8 ft
Bucket Digging Force — ISO	40,200 lbf
Stick Digging Force — ISO	28,300 lbf

Hydraulic System

Main System — Maximum Flow	560 L/min (148 gal/min)
Maximum Pressure — Equipment	5,075 psi
Maximum Pressure — Travel	5,075 psi
Maximum Pressure — Swing	4,120 psi

Swing Mechanism

Swing Speed*	11.5 r/min
Maximum Swing Torque	77,370 lbf·ft
Note	*For CE‑marked machine, default value may be set lower.

Service Refill Capacities

Fuel Tank Capacity	125.2 gal (US)
Cooling System	6.6 gal (US)
Engine Oil	6.6 gal (US)
Swing Drive — Each	2.6 gal (US)
Final Drive — Each	1.5 gal (US)
Hydraulic System — Including Tank	81.9 gal (US)
Hydraulic Tank	38.8 gal (US)
DEF Tank	10.8 gal (US)

Dimensions

Boom	Reach 6.15 m (20’2″)
Stick	Reach 3.2 m (10’6″)
Bucket	HD 1.54 m³ (2.01 yd³)
Shipping Height — Top of Cab	10 ft
Handrail Height	10 ft
Shipping Length	34.2 ft
Tail Swing Radius	10.3 ft
Counterweight Clearance	3.7 ft
Ground Clearance	1.6 ft
Track Length	15.11 ft
Length to Center of Rollers	13.1 ft
Track Gauge	8.6 ft
Transport Width	10.5 ft

Air Conditioning System

Refrigerant	R134a or R1234yf (see label/manual for identification)
Charge (R134a)	0.85 kg (1.9 lb) → CO₂‑eq 1.216 metric tonnes (1.340 tons)
Charge (R1234yf)	0.78 kg (1.7 lb) → CO₂‑eq 0.001 metric tonnes (0.001 tons)

Sustainability

Recyclability	97%

Notes

(1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator at 2,200 rpm (per standard in effect at time of manufacture).
(2) Cat diesel engines require ULSD (≤15 ppm sulfur). Compatible* with ULSD blended with lower‑carbon intensity fuels** up to: 20% biodiesel FAME*** or 100% renewable diesel (HVO/GTL). Regional regulations may restrict use. For higher biodiesel blends and full guidelines, consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250).

Category: Excavators Tag: Excavators Brand: CAT

Description
Reviews (0)

Description

Overview
Reliable. Comfortable. Productive.
The Cat® 330 GC offers you the ideal balance of dependable performance operator productivity features, and reduced costs. The Cat 330 GC is a smart choice for operations where high reliability and low-cost-per-hour performance are priorities.

Benefits
Low Fuel Consumption
The precise combination of large hydraulic pumps, an electronic main control valve, and electronically controlled cooling fans deliver top performance, helping to burn less fuel.

Cab Design for Safety
The ISO-certified ROPS cab is sound suppressed and the large windows provide all around visibility for a safer, quieter work environment.

Lower Maintenance Costs
With extended and more synchronized maintenance intervals, you get more done at a lower cost compared to the previous model.

Low CO2 Emissions
The 330 GC emits lower CO2 emissions compared to the previous 330F.
