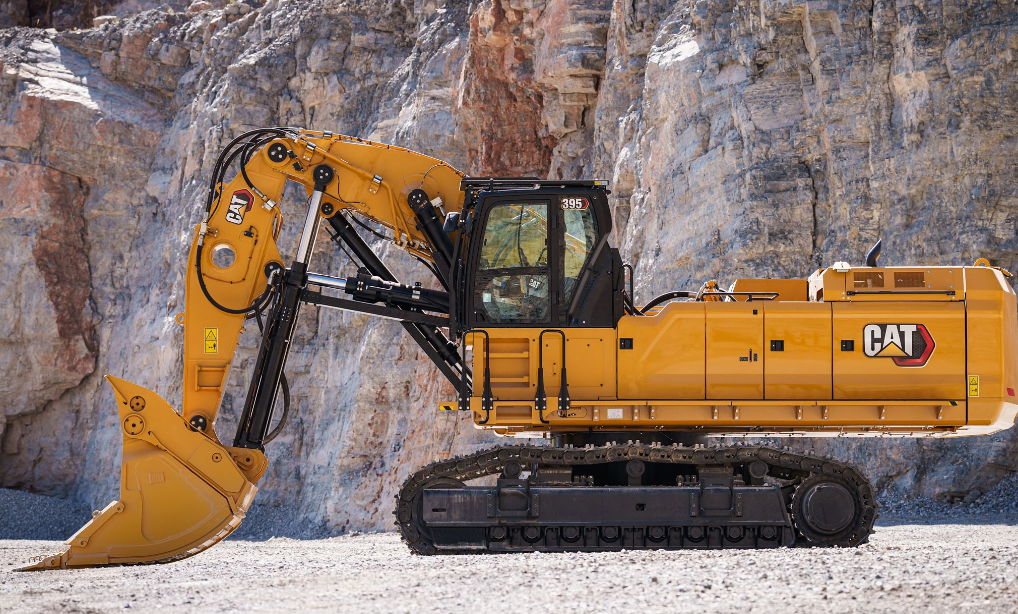

Name: CAT Large Excavators : 395 Front Shovel (FS) - Tier 4 / Stage V
Brand: CAT
SKU: 1798
Availability: InStock

Sale!

CAT Large Excavators : 395 Front Shovel (FS) - Tier 4 / Stage V

Original price was: ৳ 145,000.00.Current price is: ৳ 141,000.00.

Specifications

Technical Specifications (Cat C18 — 542 hp)

Configuration referenced: standard variable gauge undercarriage; Front Shovel (FS) Boom 4.6 m (15 ft 9 in);
FS Stick 3.48 m (11 ft 42 in); FS 6.5 m³ (8.5 yd³) bucket; 650 mm (26 in) double-grouser shoes; 15,450 kg (34,060 lb) counterweight.

Engine

Net Power — ISO 9249	542 hp
Net Power — ISO 9249 (DIN)	550 hp (metric)
Engine Model	Cat C18
Engine Power — ISO 14396	543 hp
Engine Power — ISO 14396 (DIN)	551 hp (metric)
Bore	6 in
Stroke	7 in
Displacement	1105 in³
Biodiesel Capability	B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 standards

Weights

Operating Weight	212,300 lb
Note (1)	Standard variable gauge UC; 4.6 m (15 ft 9 in) FS Boom; 3.48 m (11 ft 42 in) FS Stick; FS 6.5 m³ (8.5 yd³) bucket; 650 mm (26 in) double-grouser shoes; 15,450 kg (34,060 lb) counterweight.

Working Ranges and Forces

Maximum Digging Depth	9.7 ft
Boom	Front Shovel (FS) Boom 4.6 m (15 ft 9 in)
Stick	Front Shovel (FS) Stick 3.48 m (11 ft 42 in)
Bucket	Front Shovel (FS) 6.5 m³ (8.5 yd³)
Maximum Reach at Ground Level	32.10 ft
Maximum Cutting Height	9.7 ft
Maximum Loading Height	37.4 ft
Minimum Loading Height	34.4 ft
Max Depth Cut (8 ft Level Bottom)	23.10 ft
Max Vertical Wall Dig Depth	12.10 ft
Bucket Digging Force — ISO	115,550 lbf·ft
Stick Digging Force — ISO	106,560 lbf·ft

Hydraulic System

Main System — Maximum Flow — Implement	266 gpm
Maximum Pressure — Equipment	4,641 psi
Maximum Pressure — Travel	5,076 psi
Maximum Pressure — Swing	4,496 psi

Swing Mechanism

Maximum Swing Torque	267,000 lbf·ft
Note (1)	*For CE‑marked machine default value may be set lower.

Service Refill Capacities

Fuel Tank Capacity	322 gal (US)
Cooling System	19 gal (US)
Engine Oil	18 gal (US)
Swing Drive	3.2 gal (US)
Final Drive — Each	5.3 gal (US)
Hydraulic System — Including Tank	196 gal (US)
Hydraulic Tank	114 gal (US)
DEF Tank	21 gal (US)

Dimensions

Boom	FS Boom 4.6 m (15 ft 9 in)
Stick	FS Stick 3.48 m (11 ft 42 in)
Bucket	FS 6.5 m³ (8.5 yd³)
Shipping Height — Top of Cab	14.10 ft
Handrail Height	11.1 ft
Shipping Length	48 ft
Tail Swing Radius	15.11 ft
Counterweight Clearance	5.5 ft
Ground Clearance	2.11 ft
Track Length	19.2 ft
Track Length to Center of Rollers	15.1 ft
Track Gauge	11.6 ft
Transport Width	9 ft
Note	Track gauge: undercarriage extended with 650 mm (26″) shoes; transport width: undercarriage retracted with 650 mm (26″) shoes and no steps.

Sustainability

Recyclability	98%

Air Conditioning System

Refrigerant	R134a (GWP = 1430)
Charge	1.00 kg (2.2 lb) → CO₂‑eq 1.430 metric tonnes (1.576 tons)

Notes

(1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,900 rpm (per standard in effect at time of manufacture).
(2) Cat diesel engines are required to use ULSD (≤15 ppm sulfur) or ULSD blended with lower‑carbon intensity fuels up to: 20% biodiesel FAME* or 100% renewable diesel (HVO/GTL). *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. **Tailpipe greenhouse gas emissions from lower‑carbon intensity fuels are essentially the same as traditional fuels. For full guidance, consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250).

Category: Excavators Tag: Excavators Brand: CAT

Description
Reviews (0)

Description

Overview
Robust Digging and Breakout Force with Lightning-Quick Loading Cycles, and Rigorous Bucket Fill.
The Cat® 395 Front Shovel Hydraulic Excavator is engineered to tackle the toughest demands of large-scale mining and quarry operations. Built for exceptional durability, this powerhouse machine combines unmatched digging force with fast cycle times that ease bucket penetration.

For those seeking an excavator that provides power, precision, and reliability in challenging environments, the 395 Front Shovel Hydraulic Excavator is the ultimate solution. Maximize your productivity and efficiency while minimizing downtime and reducing maintenance costs with this indispensable machine.

Benefits
Engineered to Maximize Productivity
Features exceptional ground-level digging and breakout strength for optimal material penetration and bucket-fill efficiency. Bucket compatibility ranges from 5.6m³ Severe Duty (SD) to 6.5m³ SD, enhancing productivity and profitability. The robust and adaptable bucket clamp design securely holds a 1.33 m 7-ton steel drop ball for secondary breaking applications.

Heavy-Duty Durability and Serviceability
The reinforced, durable undercarriage and additional cylinder guards help reduce machine wear and tear while protecting your investment. Cat® Next Generation Excavators have synchronized and extended service intervals, share common parts, and offer exceptional customer service and superior product support, giving you more uptime.

Optimized for the Operator
Equipped with the Next Generation cab on a fixed riser, allowing the operator optimal visibility above the side of the truck body. Operator-oriented in-cab controls are easy to reach and help deliver optimized material penetration, fast loading, and smooth floor clean-up.
